Pole Design
This project was developed for a flagpole design competition organized by Ashghal, with the aim of proposing a symbolic national landmark for Qatar. My design, Jawarih Al Salam, explored the contrast between strength and peace through the form of birds of prey, combining national identity, movement, and light. Although the project did not win, I truly enjoyed the process of developing the concept, experimenting with the form, and translating a symbolic idea into a spatial design.
Section - Front View
1:100
Section - Side View
1:100
Lighting Study
Annotated Diagram
Night Light
Night Light
Day Light
1
2
3
4
5
6
7
8
5. Weight​
6. Rotating Handle
7. Lighting Fixture
8. Maintenance Opening
-
Falcon Sculpture
-
Pulley
-
Pole
-
Rotating Ring

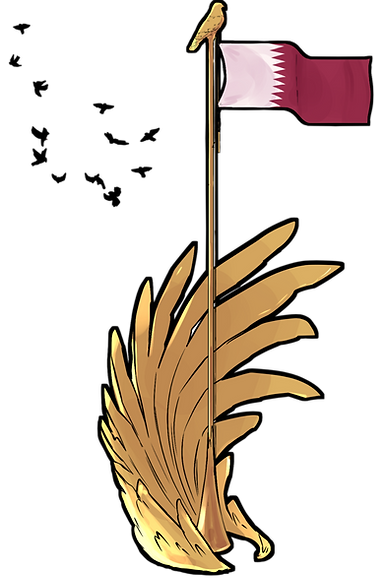

Initial Concept Visualization
A quick conceptual exploration of the mast design.
Physical Form Study
A hands-on paper exploration to understand the mast form before digital modeling.
Software Used
Rhino 7, V-Ray, SketchUp

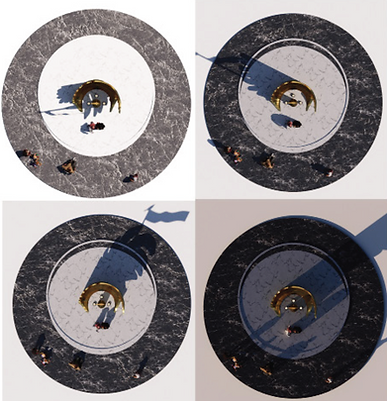

Top View Sun Study
Top views generated in Rhino illustrating shadow direction and sun movement.
